Atmosphere rotary furnace

A rotary furnace for powder heat treatment. Tube configuration, feed rate and atmosphere requirements are reviewed together to define the process.

Discuss your process

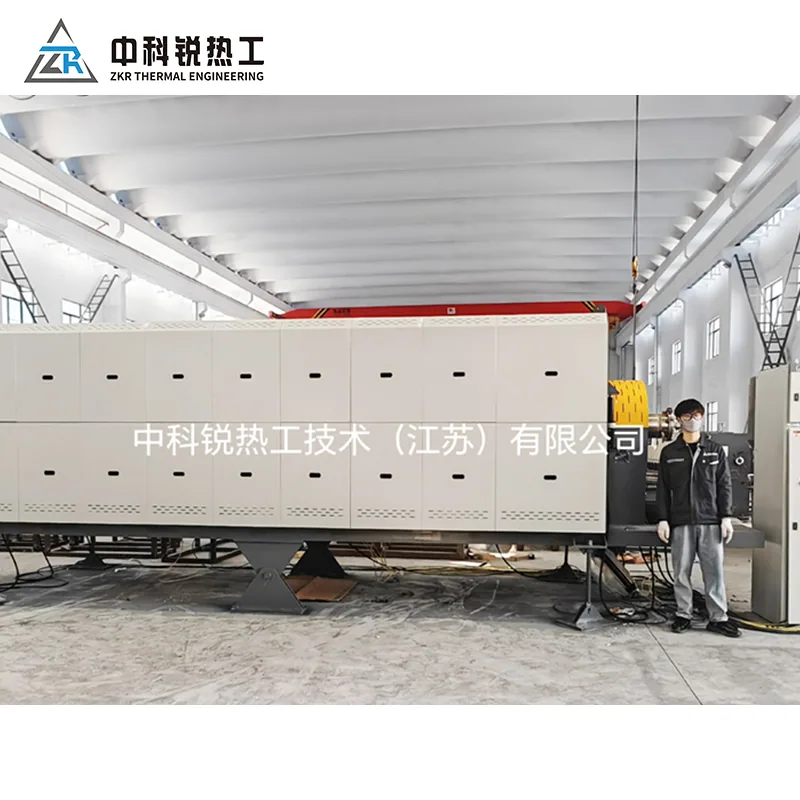

Atmosphere rotary furnace — Presentation photograph · retouched from the original

01 / 03

Engineering

Designed around your material.

Rotating process tube

Material-specific thermal cycle

Project-defined configuration

The rotary arrangement moves powder through a heated tube. Suitability depends on powder flow, particle size and the required thermal treatment.

Please share the material, target temperature, feed rate and gas requirements. Our engineering team will confirm the tube, heating system and gas-sealing configuration.

ZYHK

Configured for your process

This product line is specified project by project. The engineering proposal defines the operating envelope and equipment dimensions.

Tube dimensions, residence time and output are specified for each project. Request a technical proposal for your material.

Discuss your process

ZKR / Engineering

Define the process. Then the furnace.

Share these starting points with our overseas team. We organize the requirement with ZKR’s engineers to develop a suitable configuration.

Material & loading

Material composition, particle size or part dimensions, loading container and batch size.

Temperature profile

Peak and operating temperatures, heating rate, hold time and cooling requirements.

Atmosphere & utilities

Process gas, gas quality, exhaust requirements and available electrical supply.

Output & installation

Target throughput, operating schedule, floor space and upstream/downstream equipment.

Equipment gallery

ZYHK

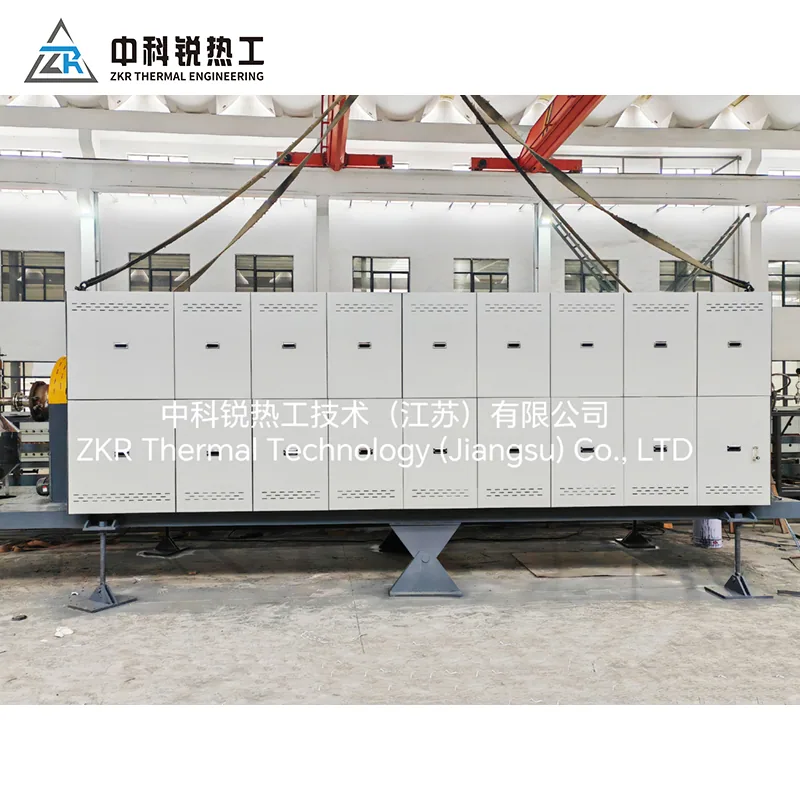

Atmosphere rotary furnace — Presentation photograph · retouched from the original

Images show supplied equipment configurations. The presentation image is retouched from the original; other images are original workshop records. Final equipment is defined by the agreed technical proposal.

Let’s talk about your process.

Tell us about your material, atmosphere and production needs. We will coordinate the next steps with the engineering team.
