Atmosphere pusher furnace

A continuous furnace that advances supported loads through successive temperature zones. Designed around the setter, material and required firing profile.

Discuss your process

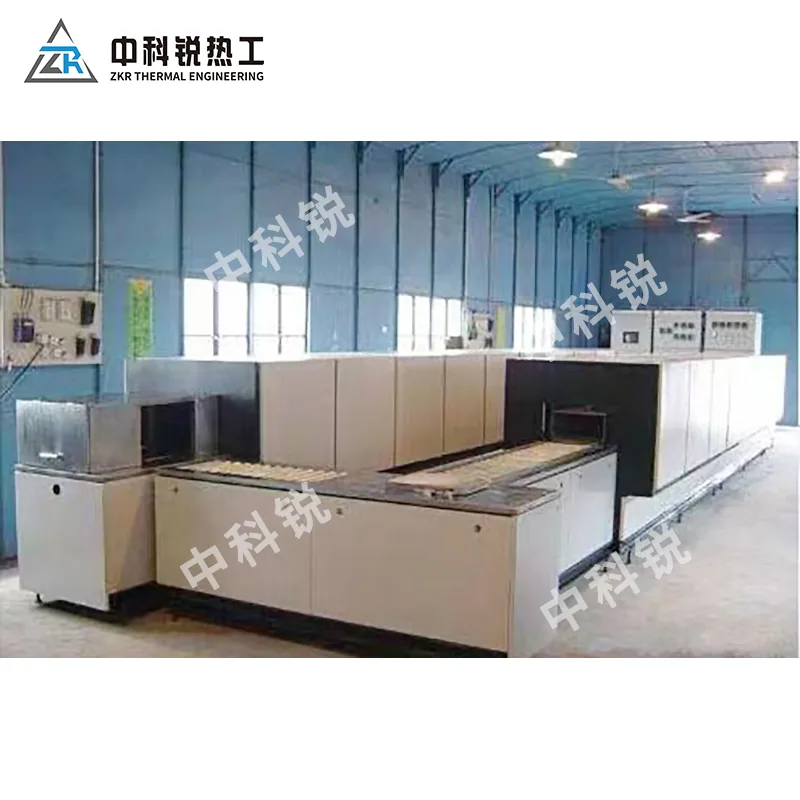

Atmosphere pusher furnace — Presentation photograph · retouched from the original

01 / 03

Engineering

Designed around your material.

Pusher-plate transport

Multiple controlled zones

Matched loading system

The pusher arrangement advances trays or supported loads through preheating, firing and cooling. The loading arrangement and push cycle are selected for the required residence time.

The original description specifies a corundum-mullite hot chamber with alumina-bubble insulation. Heating arrangements and exhaust are coordinated with the process.

ZYTK

Specifications

Swipe horizontally to view all configurations.

Parameter	ZYTK-70-13	ZYTK-120-13	ZYTK-200-13	ZYTK-260-13
Heating power	70 kW	120 kW	200 kW	260 kW
Supply	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~
Heating zones	9	12	15	18
Control points	11	16	20	26
Chamber dimensions (mm)	12000 × 380 × 220	16000 × 380 × 220	20000 × 760 × 270	25000 × 760 × 270
Plate dimensions (mm)	340 × 340 × 30	340 × 340 × 30	340 × 340 × 30	340 × 340 × 30
Instrument accuracy	≤ ±1 °C	≤ ±1 °C	≤ ±1 °C	≤ ±1 °C

Reference data from the Chinese catalog. Final equipment configuration and performance must be confirmed in the project specification.

The source catalog gives a process-dependent working range up to 1700 °C. Heating elements, refractory lining and atmosphere must be specified for the selected temperature. Instrument accuracy is not the same as load temperature uniformity.

Discuss your process

ZKR / Engineering

Define the process. Then the furnace.

Share these starting points with our overseas team. We organize the requirement with ZKR’s engineers to develop a suitable configuration.

Material & loading

Material composition, particle size or part dimensions, loading container and batch size.

Temperature profile

Peak and operating temperatures, heating rate, hold time and cooling requirements.

Atmosphere & utilities

Process gas, gas quality, exhaust requirements and available electrical supply.

Output & installation

Target throughput, operating schedule, floor space and upstream/downstream equipment.

Equipment gallery

ZYTK

Atmosphere pusher furnace — Presentation photograph · retouched from the original

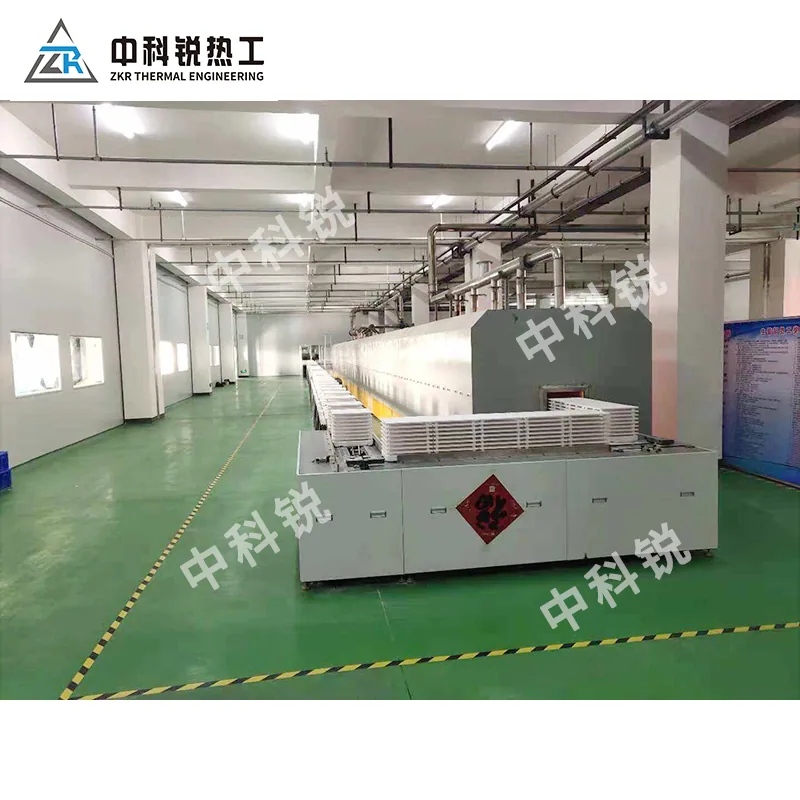

Images show supplied equipment configurations. The presentation image is retouched from the original; other images are original workshop records. Final equipment is defined by the agreed technical proposal.
