Atmosphere elevator furnace

A mechanically operated lift furnace for batch heat treatment. Loading space and heating elements are selected around the load and the firing schedule.

Discuss your process

Atmosphere elevator furnace — Presentation photograph · retouched from the original

01 / 03

Engineering

Designed around your material.

Vertical loading access

Batch processing

Configuration-specific temperature

The lift mechanism provides access to the loading platform for placing and removing the charge. The chamber and platform are sized for the project.

The original description specifies a polycrystalline mullite-fiber chamber and over-temperature and leakage protection. Heating-element selection depends on the specified operating temperature.

RBSJ

Specifications

Swipe horizontally to view all configurations.

Parameter	15 kW	20 kW	30 kW
Power configuration	15 kW	20 kW	30 kW
Supply	380 V	380 V	380 V
Control accuracy	±1 °C	±1 °C	±1 °C
Lift travel	320 mm	350 mm	400 mm
Overall dimensions (mm)	1510 × 1850 × 2000	1620 × 2100 × 2400	1870 × 2340 × 2890
Reference weight	1120 kg	1800 kg	2320 kg

Reference data from the Chinese catalog. Final equipment configuration and performance must be confirmed in the project specification.

The catalog lists custom temperature options from 600 to 1800 °C across configurations. The suitable maximum, loading space and heating rate must be specified together. Photos show example installations, not necessarily the tabulated configurations.

Discuss your process

ZKR / Engineering

Define the process. Then the furnace.

Share these starting points with our overseas team. We organize the requirement with ZKR’s engineers to develop a suitable configuration.

Material & loading

Material composition, particle size or part dimensions, loading container and batch size.

Temperature profile

Peak and operating temperatures, heating rate, hold time and cooling requirements.

Atmosphere & utilities

Process gas, gas quality, exhaust requirements and available electrical supply.

Output & installation

Target throughput, operating schedule, floor space and upstream/downstream equipment.

Equipment gallery

RBSJ

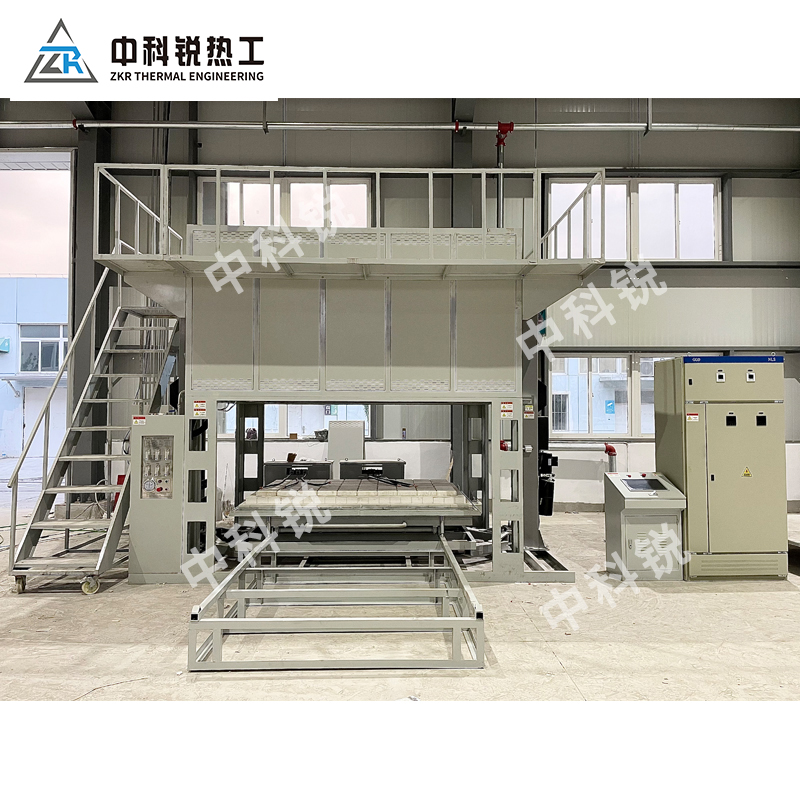

Atmosphere elevator furnace — Presentation photograph · retouched from the original

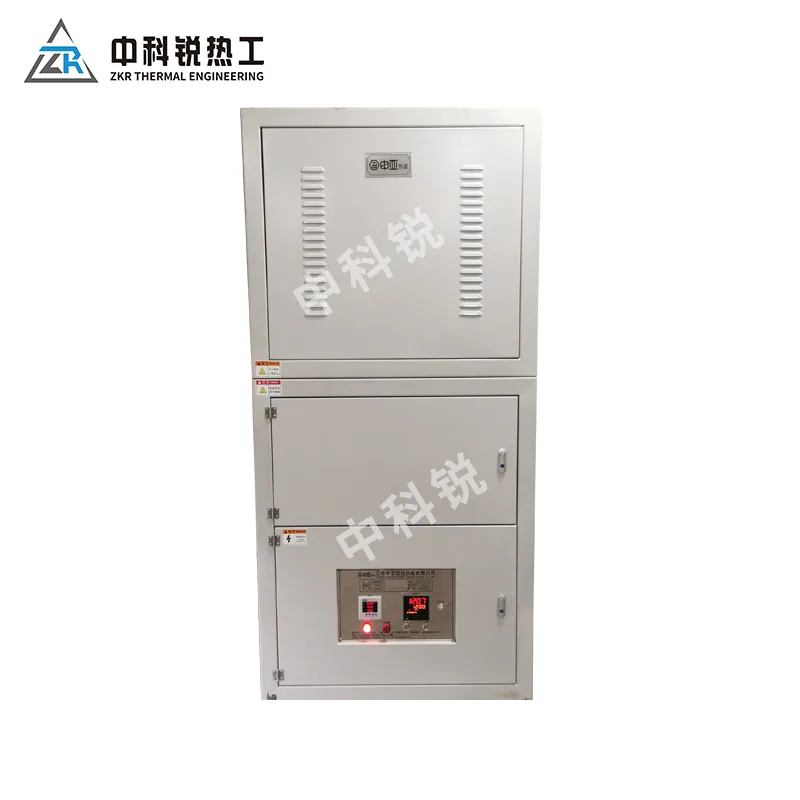

Images show supplied equipment configurations. The presentation image is retouched from the original; other images are original workshop records. Final equipment is defined by the agreed technical proposal.

Let’s talk about your process.

Tell us about your material, atmosphere and production needs. We will coordinate the next steps with the engineering team.
