Atmosphere roller hearth furnace

Continuous roller transport and zoned heating for zirconia, ceramic materials and battery powders. Loading, atmosphere and temperature profile are configured for the material.

Discuss your process

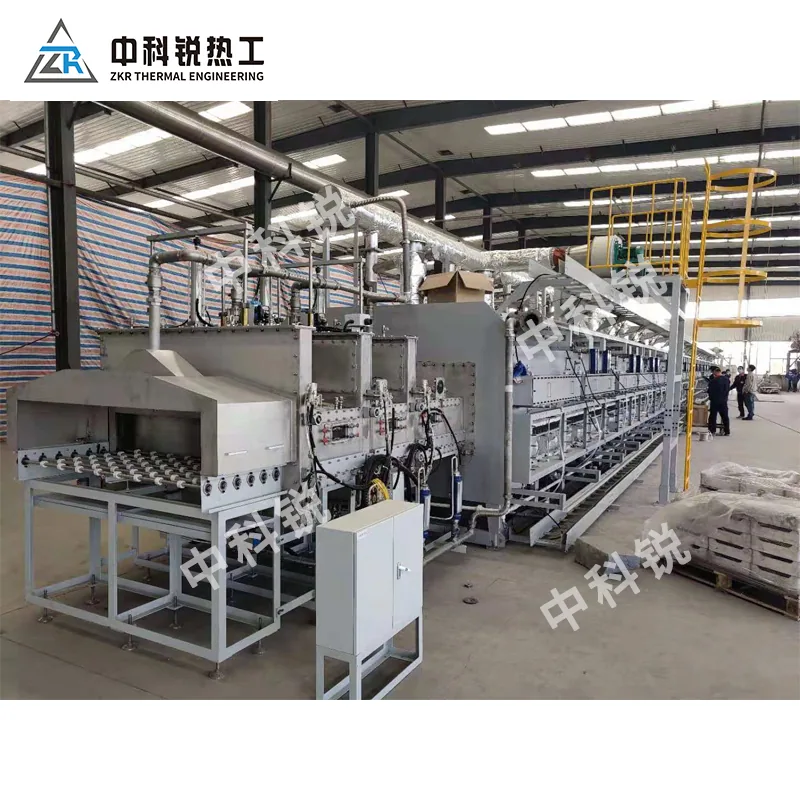

Atmosphere roller hearth furnace — Presentation photograph · retouched from the original

01 / 06

Engineering

Designed around your material.

Continuous roller transport

Zoned heating

Moisture management

A closely spaced roller bed carries the load through the furnace. The roller configuration and loading method must suit the material and its support or container.

The published design uses heating from above and below, with side exhaust to manage moisture. Low-temperature and high-temperature heating elements are selected for their operating zones.

ZYGK

Specifications

Swipe horizontally to view all configurations.

Parameter	ZYGK-80-1300	ZYGK-120-1300	ZYGK-300-1300	ZYGK-800-1300
Maximum temperature	1350 °C	1350 °C	1350 °C	1350 °C
Working temperature	1280 °C	1280 °C	1280 °C	1280 °C
Heating power	80 kW	120 kW	300 kW	800 kW
Heating zones	9	14	19	38
Control points	13	20	38	72
Supply	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~
Control accuracy	≤ ±1 °C	≤ ±1 °C	≤ ±1 °C	≤ ±1 °C
Roller pitch	75 mm	75 mm	75 mm	85 mm
Roller diameter	Ø42 mm	Ø42 mm	Ø42 mm	Ø60 mm

Reference data from the Chinese catalog. Final equipment configuration and performance must be confirmed in the project specification.

Catalog values describe reference configurations. Working space, loading method, roller material and atmosphere circuit are confirmed during technical review.

Discuss your process

ZKR / Engineering

Define the process. Then the furnace.

Share these starting points with our overseas team. We organize the requirement with ZKR’s engineers to develop a suitable configuration.

Material & loading

Material composition, particle size or part dimensions, loading container and batch size.

Temperature profile

Peak and operating temperatures, heating rate, hold time and cooling requirements.

Atmosphere & utilities

Process gas, gas quality, exhaust requirements and available electrical supply.

Output & installation

Target throughput, operating schedule, floor space and upstream/downstream equipment.

Equipment gallery

ZYGK

Atmosphere roller hearth furnace — Presentation photograph · retouched from the original

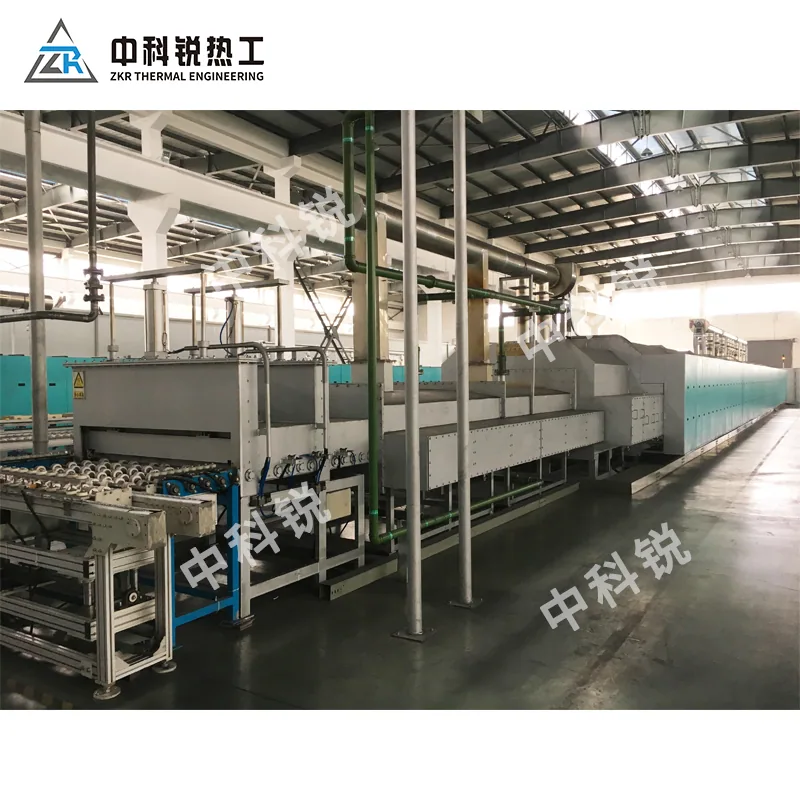

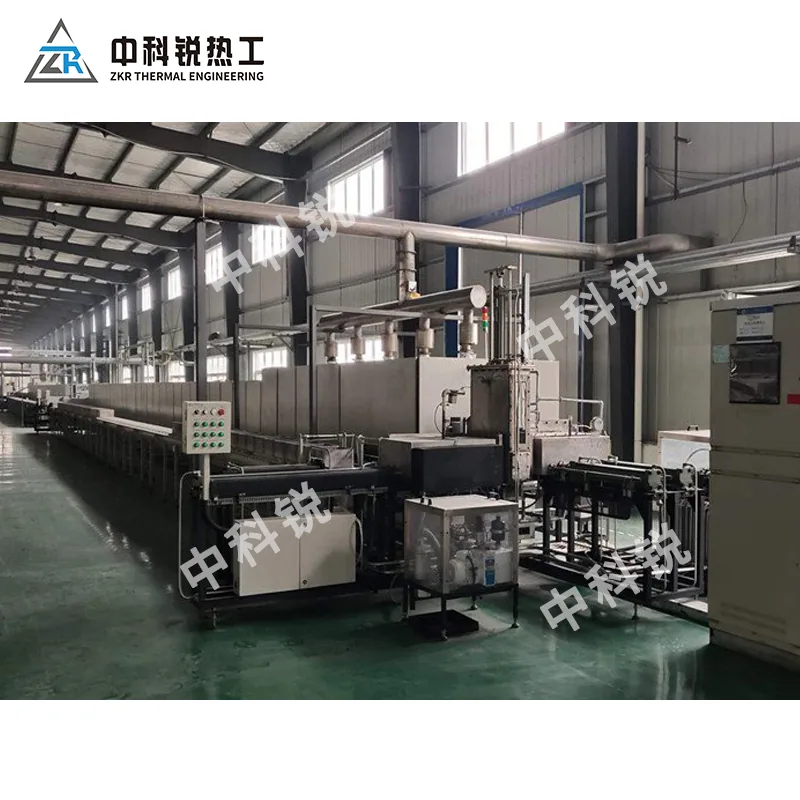

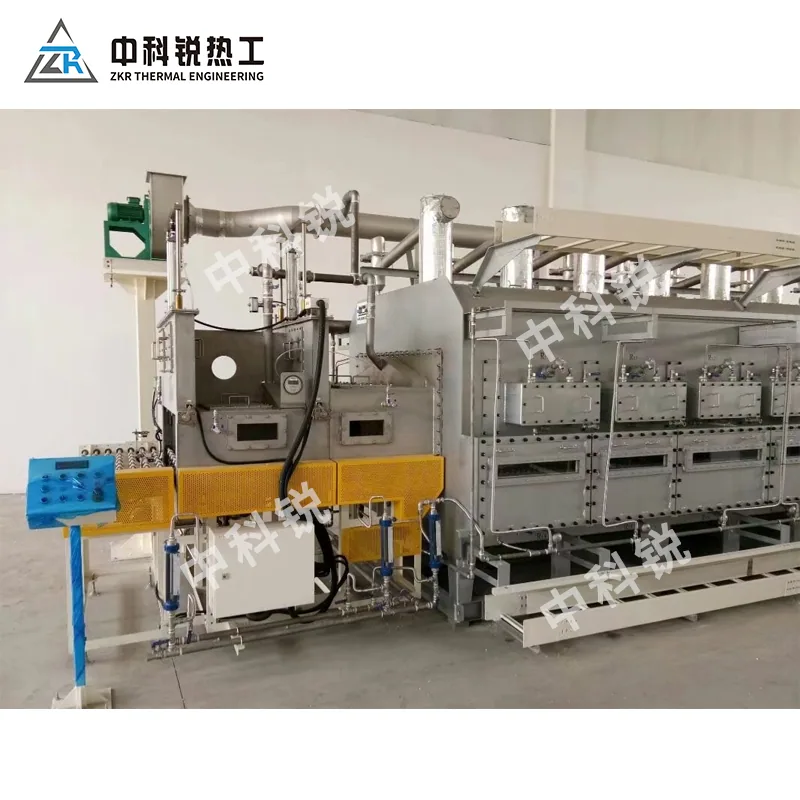

Images show supplied equipment configurations. The presentation image is retouched from the original; other images are original workshop records. Final equipment is defined by the agreed technical proposal.
