Atmosphere mesh-belt furnace

A continuous mesh-belt line for component heat treatment. Transport speed, heating zones and cooling are configured for the component and its thermal cycle.

Discuss your process

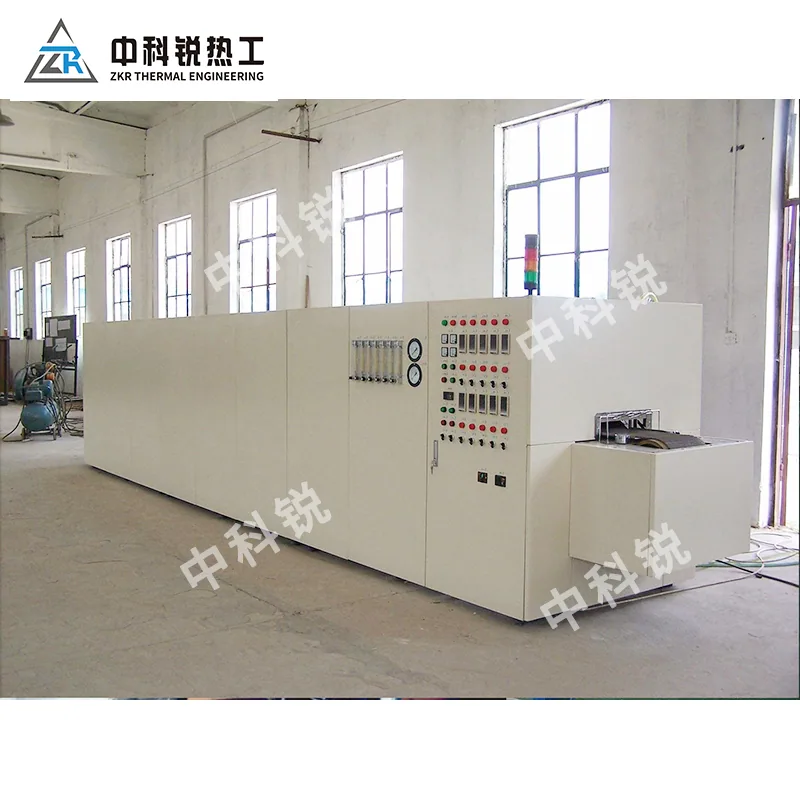

Atmosphere mesh-belt furnace — Presentation photograph · retouched from the original

01 / 04

Engineering

Designed around your material.

Continuous belt transport

Working-space options

Process-specific atmosphere

The described line combines loading, preheating, sintering, controlled cooling and discharge with a belt transport system and PID temperature control.

The product family includes powder-metallurgy sintering, thick-film firing and atmosphere joining applications. These are different process configurations; a single temperature rating does not cover every application.

ZYWK

Specifications

Swipe horizontally to view all configurations.

Parameter	12 kW	24 kW	45 kW	60 kW	75 kW	90 kW	105 kW	120 kW
Heating power	12 kW	24 kW	45 kW	60 kW	75 kW	90 kW	105 kW	120 kW
Rated temperature	920 °C	920 °C	920 °C	920 °C	920 °C	920 °C	920 °C	920 °C
Supply	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~	380 V / 3~
Reference working space (mm)	700 × 90 × 30	1300 × 150 × 50	2300 × 220 × 50	2400 × 300 × 50	3700 × 300 × 50	4700 × 300 × 50	4200 × 400 × 80	4700 × 400 × 80

Reference data from the Chinese catalog. Final equipment configuration and performance must be confirmed in the project specification.

These values describe the published ZYWK catalog configurations. Other materials and firing or joining processes require a separate temperature, atmosphere and belt specification.

Discuss your process

ZKR / Engineering

Define the process. Then the furnace.

Share these starting points with our overseas team. We organize the requirement with ZKR’s engineers to develop a suitable configuration.

Material & loading

Material composition, particle size or part dimensions, loading container and batch size.

Temperature profile

Peak and operating temperatures, heating rate, hold time and cooling requirements.

Atmosphere & utilities

Process gas, gas quality, exhaust requirements and available electrical supply.

Output & installation

Target throughput, operating schedule, floor space and upstream/downstream equipment.

Equipment gallery

ZYWK

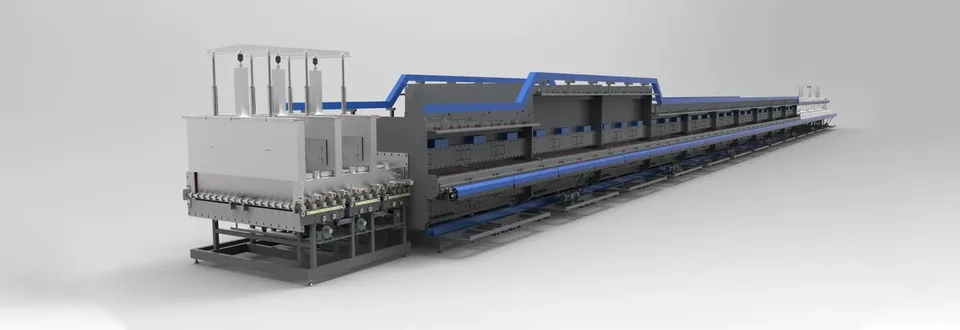

Atmosphere mesh-belt furnace — Presentation photograph · retouched from the original

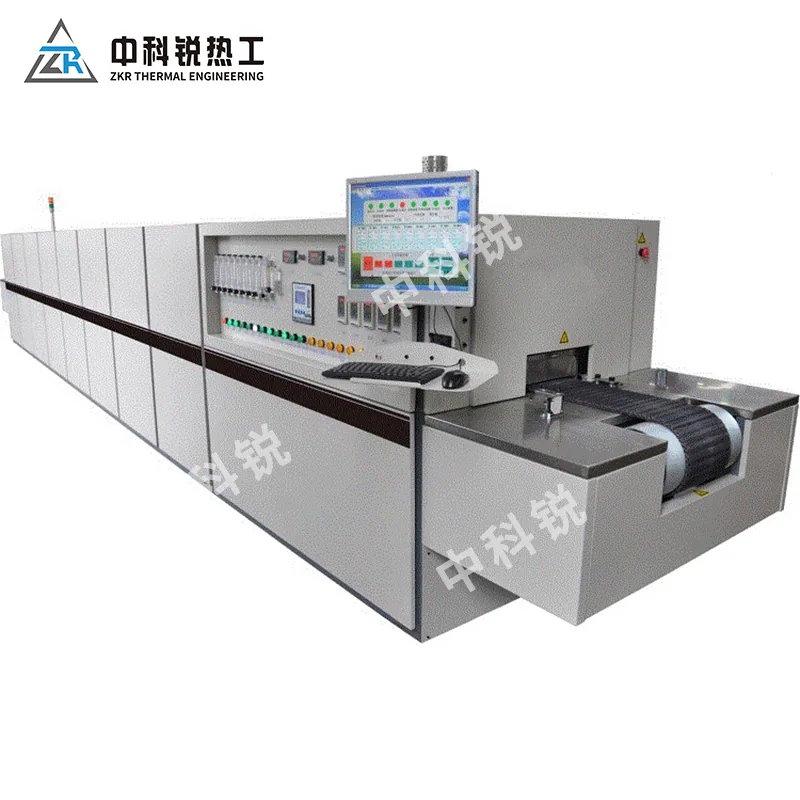

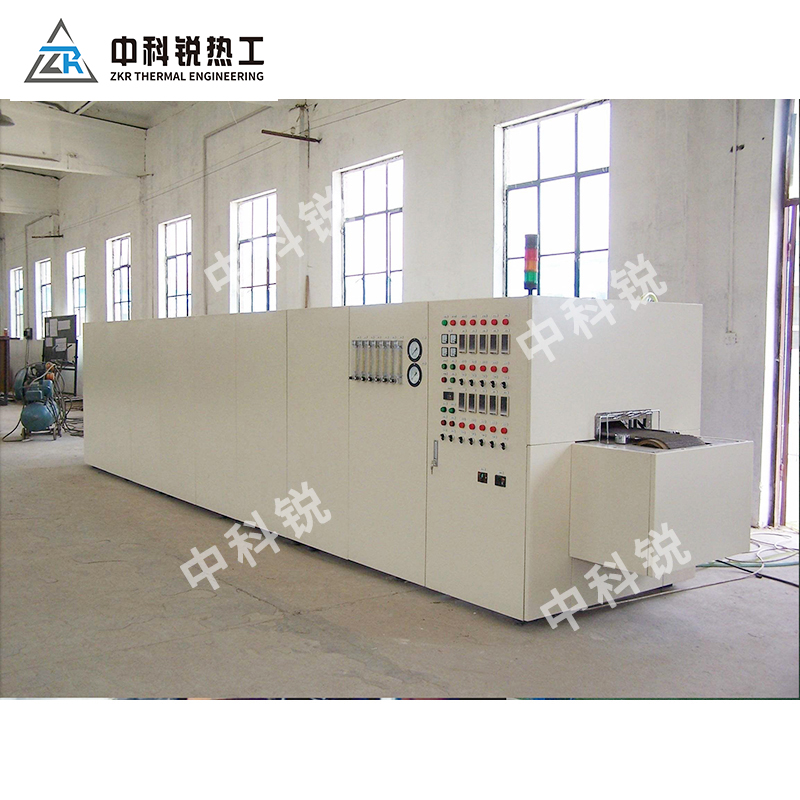

Images show supplied equipment configurations. The presentation image is retouched from the original; other images are original workshop records. Final equipment is defined by the agreed technical proposal.
